Krober Rev counter wiring

Unread postby Simon Smith » Mon Mar 14, 2011 2:24 pm

Does anybody know how a Krober rev counter should be wired?

lang
Scything Through The Field
Posts: 187
Joined: Sun Jan 17, 2010 4:42 pm
Full Name: howard langham

Re: Krober Rev counter wiring

Unread postby lang » Mon Mar 14, 2011 4:28 pm

A Krober must always be mounted 25mm away from all adjacent parts. It is always connected to the contact breaker by the lead supplied with the rev counter on terminal 1. The mounting bracket of the rev counter which is connected to terminal 4 of the rev counter by a short lead must make electrical contact with the earth of the motorcycle. If used with electronic ignition the main lead is connected to the CB side of the coil.

Hope this helps,
Howard.

User avatar
Simon Smith
Throttle on the Stop
Posts: 592
Joined: Tue Jan 15, 2008 9:16 pm
D/P/T/M/S: Driver
Full Name: Simon Smith
Twitter: @simonsmithno92
Location: Solihull, West Midlands
Contact:

Re: Krober Rev counter wiring

Unread postby Simon Smith » Wed Mar 16, 2011 9:35 pm

Thanks Howard.

All sorted now. Except the engine won't start but that's another issue.

User avatar
Eddy Wright
Throttle on the Stop
Posts: 635
Joined: Wed Sep 20, 2006 4:01 pm
D/P/T/M/S: Driver
Full Name: Eddy Wright
Location: North Yorkshire
Contact:

Re: Krober Rev counter wiring

Unread postby Eddy Wright » Wed Mar 16, 2011 11:19 pm

Ignition Timing ?
Eddy Wright
Free Styler

User avatar
Simon Smith
Throttle on the Stop
Posts: 592
Joined: Tue Jan 15, 2008 9:16 pm
D/P/T/M/S: Driver
Full Name: Simon Smith
Twitter: @simonsmithno92
Location: Solihull, West Midlands
Contact:

Re: Krober Rev counter wiring

Unread postby Simon Smith » Thu Mar 17, 2011 7:29 am

I set it static and with a strobe on rollers. There is a spark and fuel. Just won't go. It was fine two days ago.

User avatar
Eddy Wright
Throttle on the Stop
Posts: 635
Joined: Wed Sep 20, 2006 4:01 pm
D/P/T/M/S: Driver
Full Name: Eddy Wright
Location: North Yorkshire
Contact:

Re: Krober Rev counter wiring

Unread postby Eddy Wright » Thu Mar 17, 2011 2:51 pm

What ignition is fitted ?
Eddy Wright
Free Styler

User avatar
Simon Smith
Throttle on the Stop
Posts: 592
Joined: Tue Jan 15, 2008 9:16 pm
D/P/T/M/S: Driver
Full Name: Simon Smith
Twitter: @simonsmithno92
Location: Solihull, West Midlands
Contact:

Re: Krober Rev counter wiring

Unread postby Simon Smith » Thu Mar 17, 2011 3:59 pm

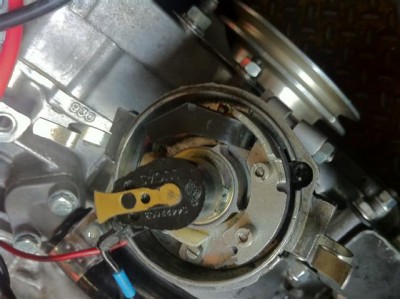

It was a points, condenser type.

I have now fitted the one off our old engine.

Does anyone know where the two wires should go?

Dizzy (Small).JPG

User avatar
Eddy Wright
Throttle on the Stop
Posts: 635
Joined: Wed Sep 20, 2006 4:01 pm
D/P/T/M/S: Driver
Full Name: Eddy Wright
Location: North Yorkshire
Contact:

Re: Krober Rev counter wiring

Unread postby Eddy Wright » Thu Mar 17, 2011 5:01 pm

Where is the Condenser ? If its not in the distributor, then one wire goes to the coil and the other to the condenser.
Eddy Wright
Free Styler

User avatar
Simon Smith
Throttle on the Stop
Posts: 592
Joined: Tue Jan 15, 2008 9:16 pm
D/P/T/M/S: Driver
Full Name: Simon Smith
Twitter: @simonsmithno92
Location: Solihull, West Midlands
Contact:

Re: Krober Rev counter wiring

Unread postby Simon Smith » Thu Mar 17, 2011 10:22 pm

Gone back to points dizzy. Still not running. Suspect fuel contamination.

I'll flush the system tomorrow and try new fuel.

richard
Scything Through The Field
Posts: 122
Joined: Thu Jan 04, 2007 12:08 am
Location: essex

Re: Krober Rev counter wiring

Unread postby richard » Sun Mar 20, 2011 3:15 pm

Hi, the distibutor you have there is electronic it has no points and condencer and the two wires go to the control box.

User avatar
Simon Smith
Throttle on the Stop
Posts: 592
Joined: Tue Jan 15, 2008 9:16 pm
D/P/T/M/S: Driver
Full Name: Simon Smith
Twitter: @simonsmithno92
Location: Solihull, West Midlands
Contact:

Re: Krober Rev counter wiring

Unread postby Simon Smith » Mon Mar 21, 2011 4:27 pm

Hi Richard,

I need to know the make. It never had a control box.

I've fitted a brand new Lumenition which didn't work either. Dave Johnson and I fitted a new loom and a spare Lumenition and it is all working now.

What a pain this has been. Must of had an intermittent short in the loom.

User avatar
Triplebrew2
Scything Through The Field
Posts: 146
Joined: Fri Oct 12, 2007 11:16 am
D/P/T/M/S: Driver
Full Name: Grant Tapsell
Location: Rugby, Warwickshire
Contact:

Re: Krober Rev counter wiring

Unread postby Triplebrew2 » Tue Mar 22, 2011 4:19 pm

Glad u got it all sorted Simon, best of luck for the weekend.
